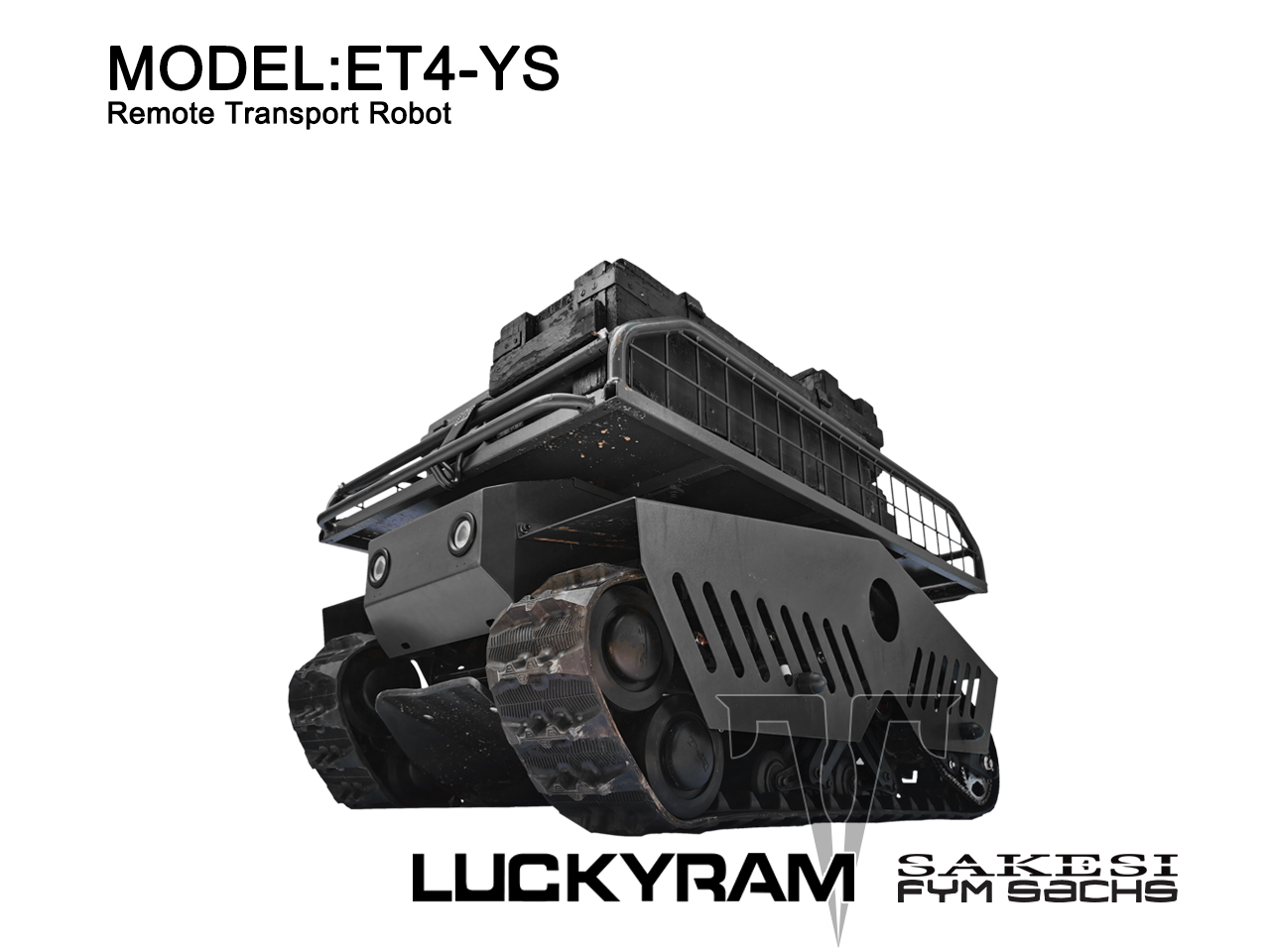

| Driverless tracked transporter |
| MODEL | ET4000-YS |
| DIMENSION(L*W*H) | 1400*785*970mm |
| NET WEIGHT | 176KG |
| DRAG WEIGHT | 300KG |
| MOTOR | PERMANENT MAGNET SYNCHRONOUS MOTOR |
| RATED POWER | 2000W*2 |
| MAX POWER | 4200W*2 |
| MAX TORQUE | 49N.M*2 |
| BATTERY | TERNARY POLYMER LITHIUM BATTERY |
| SPECIFICATION OF BATTERY | 72V45AH |
| CHARGER | 84V15A |
| CHARGING TIME | ≤3HOURS |
| CHARGING AMBIENT TEMPERATURE | 0℃ TO 50℃ |
| TRACK | DOUBLE RUBBER TRACK |
| SUSPENSION SYSTEM | ALUMINUM CASTING
CHRISTIE SUSPENSION |
| SHOCK ABSORBER | HYDRAULIC DAMPING *6 |
| MAX SPEED (FORWARD) | 22KM/H（6.1M/S） |
| MAX SPEED (BACK OFF) | 22KM/H（6.1M/S） |
| TURNING RADIUS | 0M |
| CLIMBING ABILITY (FORWARD ) | SLOPE ≥ 100% (ANGLE ≥ 45 °) |
| CLIMBING CAPACITY (LATERAL) | SLOPE ≥ 60% (ANGLE ≥ 31 °) |
| RANGE | ≥ 30KM (NORMAL TEMPERATURE @ AVERAGE 15KM / H) |
| DISCHARGE AMBIENT TEMPERATURE | -15 ℃ TO 60 ℃ |
| REMOTE CONTROL DISTANCE | WITH OBSTACLES: 300M
WITHOUT OBSTACLE: 600M |
| FR/RR LIGHTS | 10W*4 |
| APPLICABLE ENVIRONMENT | SNOW / SAND / MUD / MOUNTAIN / DEPRESSION / ROAD |
l Fast speed, strong climbing ability, long remote control distance, flexible and can turn around in place.
l Can carry 200kg goods, and the front and rear railings can be disassembled quickly, which is convenient for loading super long articles.
l Can be used to load equipment (such as generator set, pumping pump set, etc.) for outdoor operation.
l It can provide accompanying ammunition support to infantry squads and infantry units in the army, and the combat effectiveness will be doubled.
l Assembled with the trailer ball, which can tow more than 300kg cargo sledge or wheeled trailer.
